AV Over IP

Video Wall Controller

IP based

AV over IP
Video Wall Controller

AV over IP visualized IP based system is truly distributed, serverless, decentralized, and innovatively visualize the control of video, audio, and environment, allowing users to achieved what they see what they get, greatly reducing the misoperation rate of users and improving the system availability and reliability.

Unique Advantage


Follow me


User defined


One touch


Audio coordinaation


Cross platform/regional


Smart mouse

System Functions

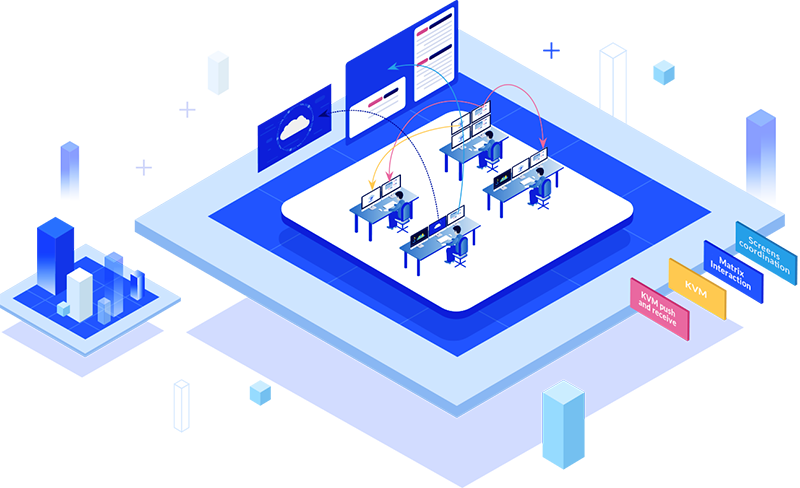

Flexible Authority Management, Multi-user Synchronization Control

AV over IP allows multiple users to perform online management operations at the same time, and supports hierarchical management of user permissions,which can be refined to the permissions of each signal source and screen. (Support password, fingerprint, face recognition etc to login)

One-key Recovery of
Preset Scenes

System Support one-key recovery or preset function, node has programmable storage capability, which can automatically restore the system before system shut down. Ex: volume, video wall power on/off, signal position, lighting etc.

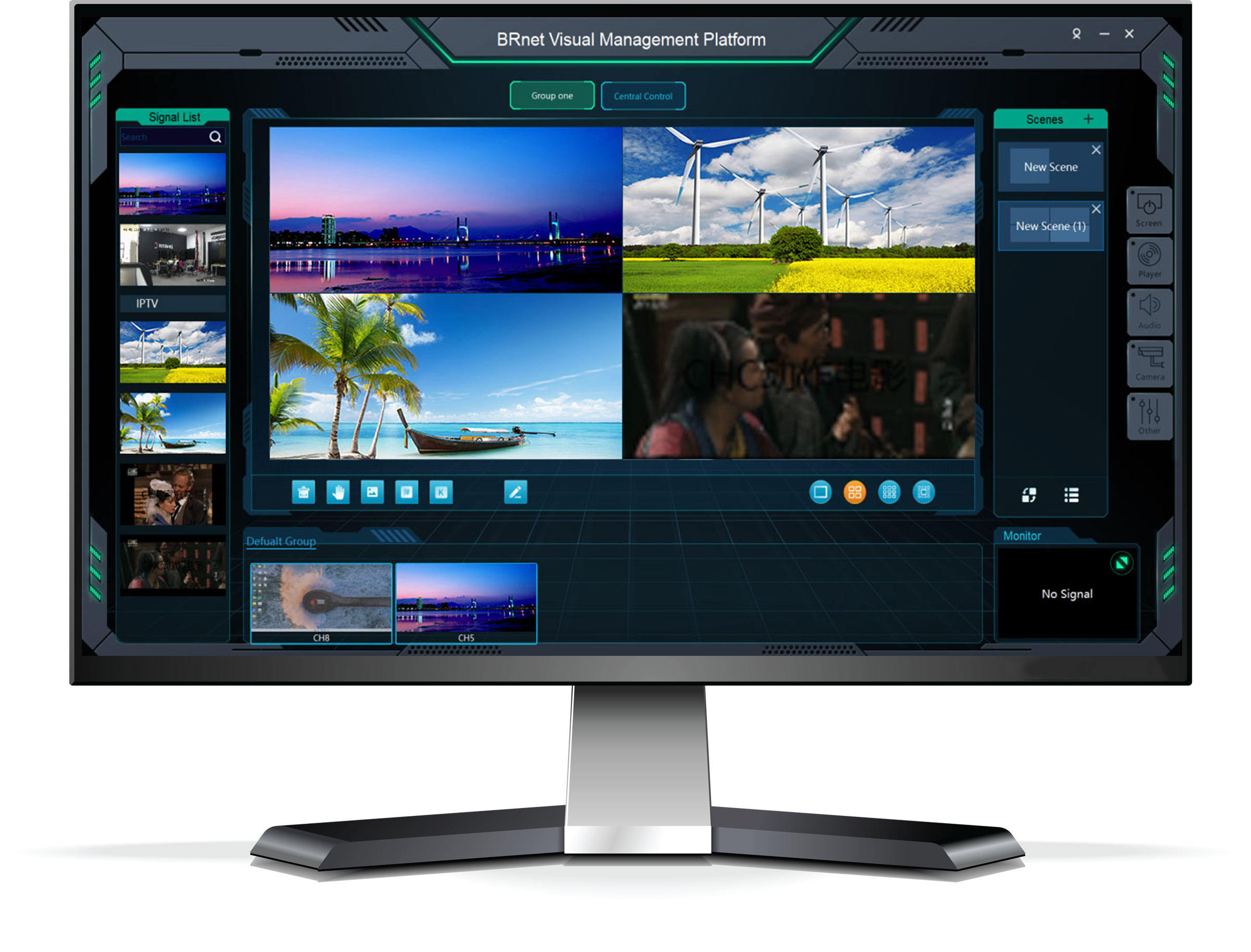

Multiple Signal Processing,
Smart Preview And Echo

Support LED, DID, LCD, DLP Splicing, roaming, drag and drop, EDID, overlap and PIP etc , open 16 different signals in one screen, IPC can access directly without server.  Support multiple signal source preview at the same time, no limited.

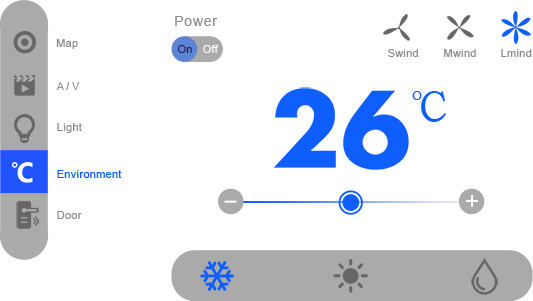

Central Control

Third party control: audio, lighting, AC, power supply, camera etc third party device control;
Environment status feedback: Temperature, humidity, PM2.5 etc.
Time management: schedule the corresponding mode operation through time line.
One-key linkage, easy control, one key control local & global environment status.

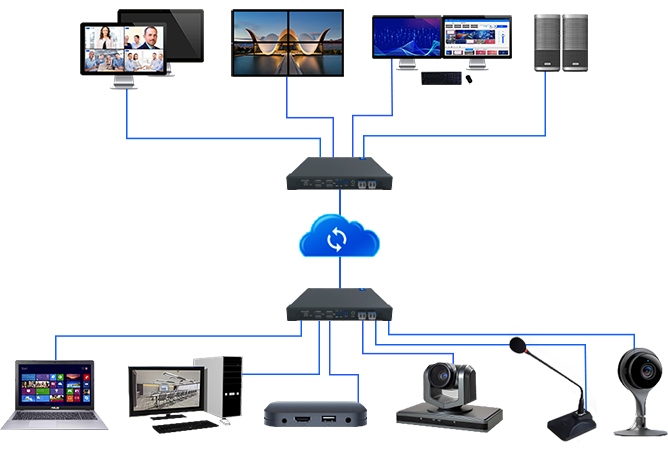

Multiple Signal Access

Single Resolution 3840*2160@60HZ, (Compatible 4096x2160@60hz, 3840*600p@60hz, 1920x1200p@60hz, 1080p@60hz and other backward resolution), Support HDMI, VGA, DVI, DP, AV, SDI etc. Support pixel to pixel transmission with image distortion.

KVM

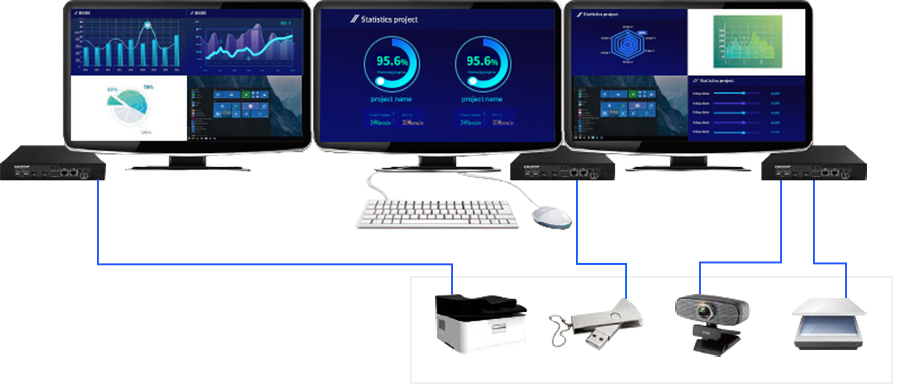

USB Device Access

Any seat supports keyboard,
mouse and USB device access, read and write and control.

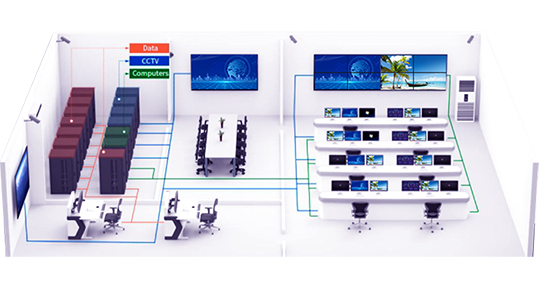

KVM Agent

KVM support 4 equal division or 1 or other arbitrary definition of screen. KVM support multiple screen, roaming, drag and drop, multi-screen.

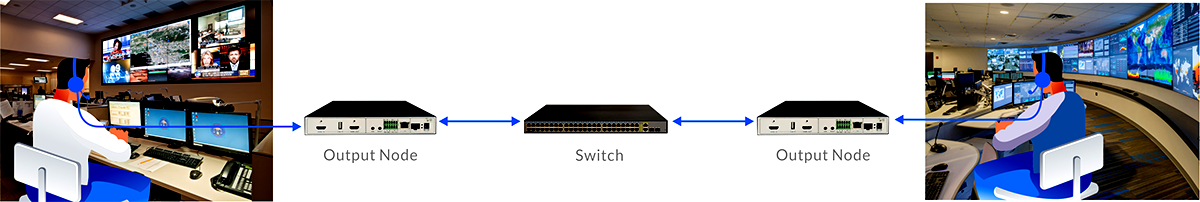

Audio Function , KVM * PC Two-way Transmission

The OSD menu can arbitrarily call the audio signal of any agent node within the authority,
the audio and video are completely synchronized, and audio control can be realized.
Support audio broadcast function, intercom function. Support function between agents,
which can realize similar Skype chat function.

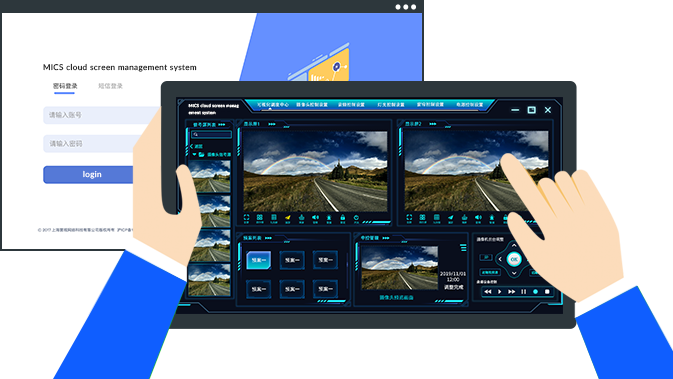

Visualization management

Support LED, DID, LCD, DLP Splicing, roaming, drag and drop, EDID, overlap and PIP etc , open 16 different signals in one screen, IPC can access directly without server. Support multiple signal source preview at the same time,no limited.

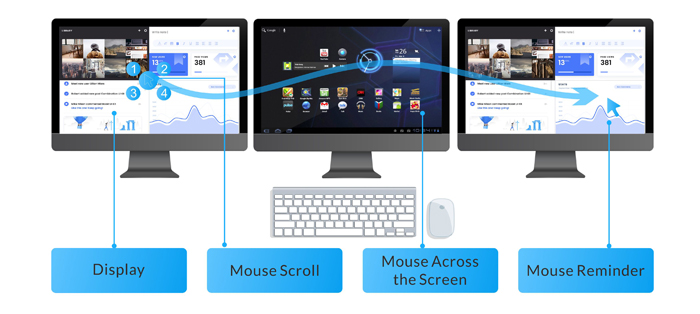

One person with multiple machines,
one machine with multiple screens management

The system supports a seat operator to manage multiple business workstations through a set of keys and mouse, and can also easily obtain other seats or large-screen video data to the local display.

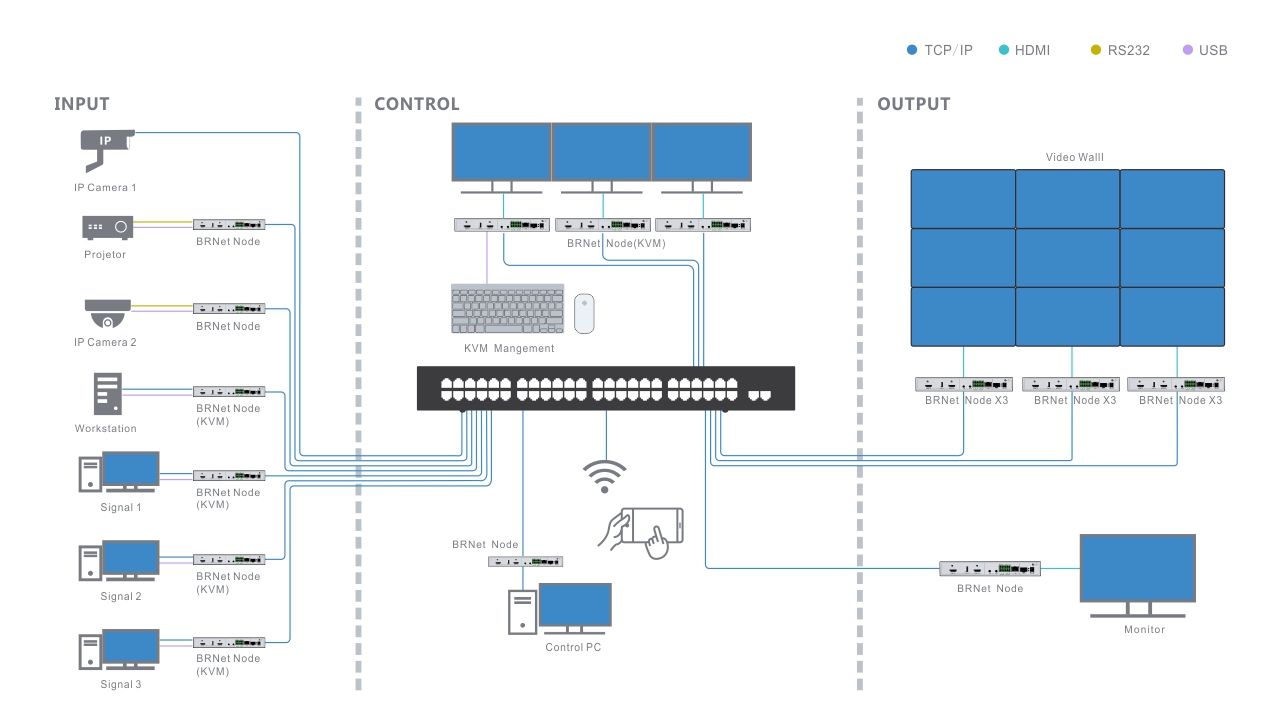

System Topology


Application

Broadcast

Energy Management

Traffic and Transportation

Operate Center

Government Dept

Telecommunication

Public Management

Financial Services

Power Center
