BR20 Series

Multi Projection Fusion

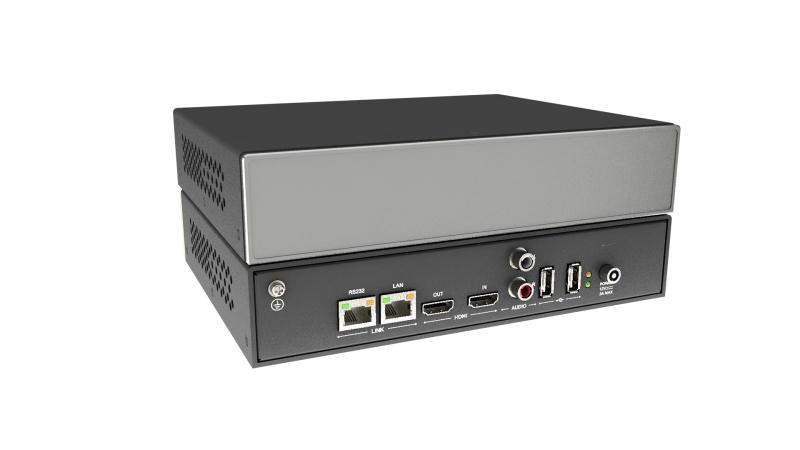

BR20 is a new type of integrated playback host that can support 1 HDMI high-definition signal source acquisition and display in a variety of special-shaped windows. Its built-in storage space supports ultra-high-definition 4K/8K film source playback function, and outputs to the projector through multiple HDMI ports, realizing multi-channel video panoramic integration, creating a completely integrated video effect, allowing consumers to enjoy the ultimate visual feast.

Key Features

Pure Hardware Architecture (FPGA)

Pure hardware FPGA architecture; Efficient and stable.
365 days, 7x24 hours operation.
Automatic operation after booting, support power-off protection.
Built-in 32G/64G storage and high-definition player, automatically play high-definition video.

Geometric Correction

Optimize the geometric correction grid map, support customizing the color of the geometric correction grid line, each channel supports a maximum of 64×32 point grid geometric correction, Not only can the display screen be corrected according to the shape of the projection screen (flat, curved, spherical, etc.), Match with the projection screen, adjust the overlap area between the projectors to achieve pixel-level overlap and alignment, At the same time, it can perfectly handle the deformation of any shape such as wall corners, and improve the image display effect after edge fusion.

Multiple Windowing Effects

Support roaming, PIP, zooming in/out, stretching, scene switch.
Support opening up to 8 windows on each screens,support roaming, overlay, zoom in/out, multi-window switching, picture-in-picture, signal clip and a variety of display modes such as split screen, full screen and combination screen.

Multiple Playback Modes

Support loop playback and random playback of video content.
Support switching control of start and pause of video content.

Mobile Device Control

Support the use of mobile phones, IPAD, tablet computers and other mobile terminals to switch the layout and scene display of the large screen.
Can send barrage via mobile.

Dual Screen Display and Control

The system has split-screen display and split-screen control functions; A single BR20 can control the independent display and independent control of two large screens at the same time, reducing the number of equipment and user costs, and enhancing the flexibility of solution design and scene application.

Projection Control

BR20 supports controlling the projector's power on and off.

Extended Cascade

The system has an extended cascading function; when the number of integrated projectors exceeds 9, the number of integrated channels can be expanded through network cascading to achieve ultra-large-scale integrated applications.

Interactive Upgrade

Support interactive expansion function, without replacing the original equipment, through software upgrades and adding radar methods to achieve interactive functions.

Key Features


BR20-1/3


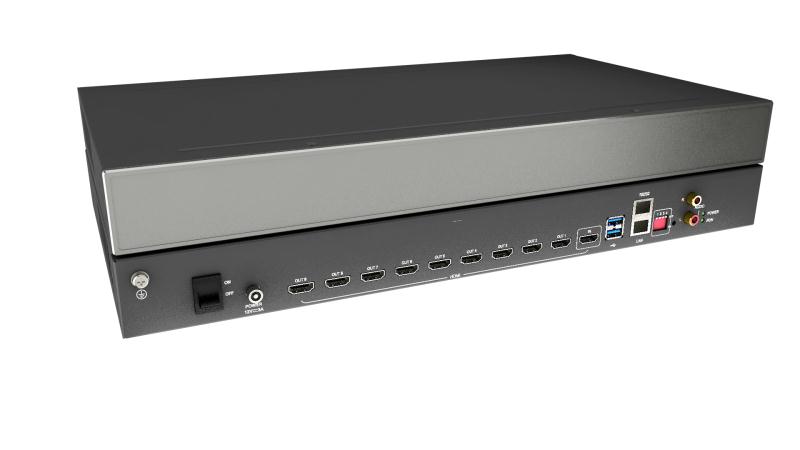

BR20-4/9

BR20 Series BR20-1/3 BR20-4/9
Overall Size 220mm*125mm*45mm 440mm*200mm*45mm
power Input 12V/DC,2A 12V/DC,3A
Total Power 10W 25W
Operating Temperature -20℃~50℃ -20℃~50℃
MTBF 30000 hours 30000 hours
MTTR 10s 10s
Input Interface Parameters
Interface Type HDMI Type A HDMI Type A
Signal Format HDMI 1.4 HDMI 1.3
Resolution 4K@30Hz, 1920*1080P@60Hz,backward compatible 1920*1080P@60Hz,backward compatible
HDCP Support Support
EDID Support Support
Onput Interface Parameters
Interface Type HDMI Type A HDMI Type A
Signal Format HDMI 2.0 HDMI 1.3
Resolution 4K@30Hz, 1920*1080P@60Hz,backward compatible 1920*1080P@60Hz,backward compatible
HDCP Support Support
Built-in Playback Parameters
Signal Format MP4, MOV, MPG MP4, MOV, MPG
Resolution Support 3840*2160P, backward compatible Support 3840*2160P, backward compatible
Equipment Control
Network Control Port RJ45 RJ45
Serial Control Port RJ45 RJ45
Network Control Protocol TCP/IP TCP/IP
Serial Control Protocol RS232 RS232
