NWA Series

LED Display

FINE PITCH LED DISPLAY

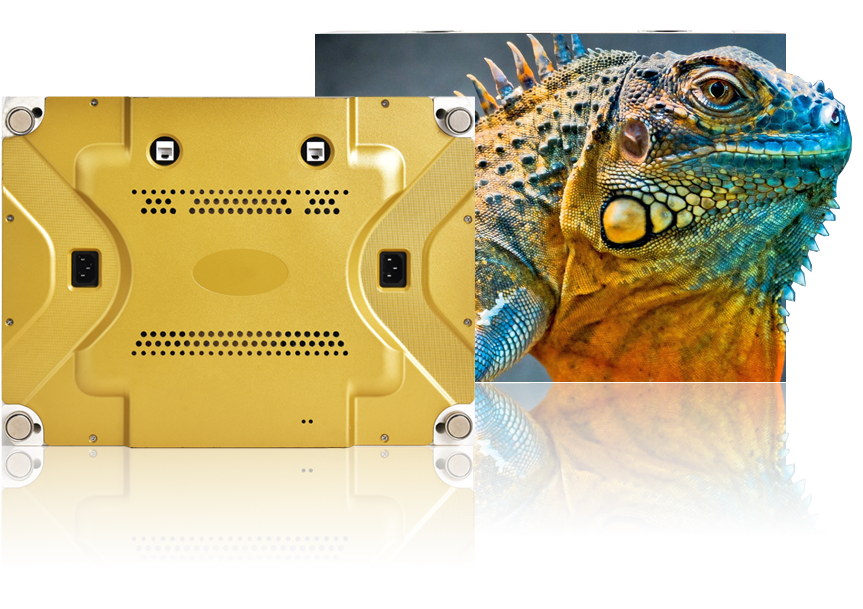

NWA Series LED Display

P1.25 | P1.56 | P1.667

4:3 Nano Cabinet

Fine Pitch LED displays represents the top technology of LED display field, they may be used in high-end conference rooms, TV studios, the government mansion, etc. It has the smallest pixel pitch (1mm or even less) and the finest display effect. BRWall is the pioneer in the field of HD LED display, and has many successful cases already.

Key Features

No Granular Effect

No granular effect, good uniformity and no mosaic phenomenon.

2D/3D Display

Support 2D/3D display at the same time, active 3D without strobe, no loss of resolution.

Dual Signal Inputs

Redundant power supply design, dual signal inputs, system’s stability and reliability.

Point-by-point Calibration

Module-level point-by-point calibration design, power-on automatic balance correction.

Higher Precision

Higher precision, full-box CNC finishing, external dimensional accuracy +-0.025mm, plane accuracy +-0.05mm.

Lighter Weight

Lighter weight, one-fourth lighter than traditional die-cast aluminum, and twice as light as traditional iron boxes.

More Safe

More safe, the new cabinet uses super new materials, flame retardant V0, insulation is not conductive.

Thickness is Thinner

The thickness is thinner, the box is only 56mm, and the thickness of the bottom case is omitted, and the whole screen is thinner.
Higher precision, full-box CNC finishing, external dimensional accuracy +-0.025mm, plane accuracy +-0.05mm.
More safe, the new cabinet uses super new materials, flame retardant V0, insulation is not conductive.
Lighter weight, one-fourth lighter than traditional die-cast aluminum, and twice as light as traditional iron boxes.
The thickness is thinner, the box is only 56mm, and the thickness of the bottom case is omitted, and the whole screen is thinner.

300x400 Nanometer Die Casting Box

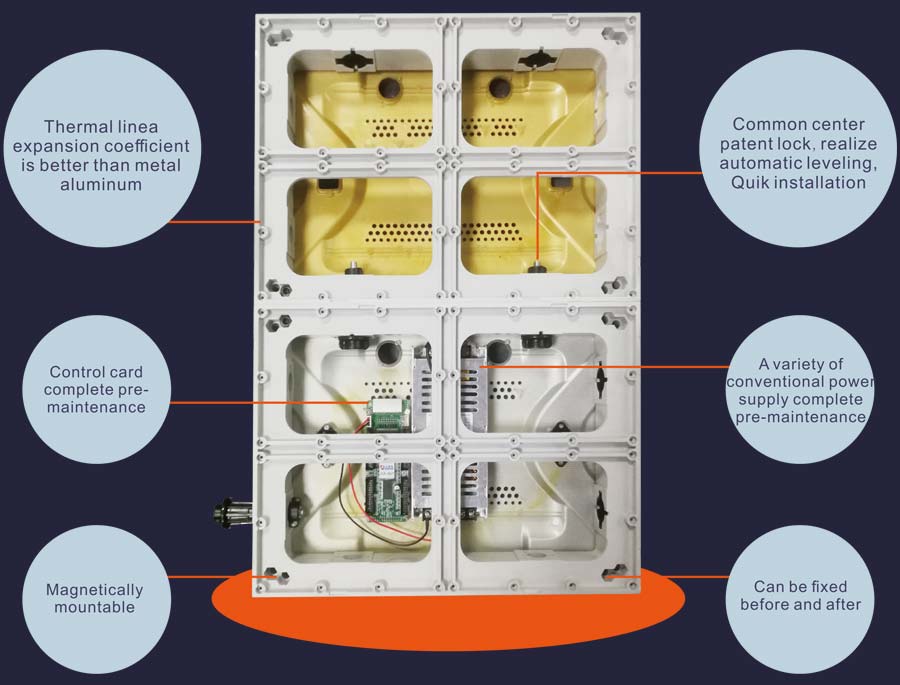

The construction is faster, the patented mid-point lock is used, the splicing precision is higher, the construction sfficiency is faster, and no repeated correction is needed.
More convenient maintenance, complete front maintenance, module, power supply, system card, front cabinet maintenance.
More installation methods, magnetic, screw fixed, front, near, lifting,can be directly attached to the wall.
The size is more stable, using super new materials, thermal linear expansion coefficient of 0.3x10-4(-20 to 60 degrees )

Completely Front Maintenance

Cabinets and modules are separated packed, first install cabinets and then install modules.
Smart adjust: unique alignment features ensure the video wall is perfect aligned and seamless, the flatness tolerance of screen is ≤ 0.1mm.
1.The magnet edge-on the front.
2.Magnet is appressed in the middle of module.
3.Pulling the magnet slowly, module will be apart from cabinet.
4.The same way to put the module back to the cabinet.

Power Supply &
Signal Back up

Redundant power supply design, dual signal inputs, auto matically detecting the failure then switch, ensure the whole system’s stability and reliability.

Low Brightness
With High Gray Scale

BRWall LED display use high quality LED Lamps and PWM drive IC, goes with Lamp Video’s patented mask and special images arithmetic processing that makes a better color rendering, color revivification and more details even in low brightness mode. Excellent gray scale performance even in low-brightness of 100 cd/㎡.
Normal LED display Low gray scale poor performance.
BRWall LED display low brightness, high gray scale.
960Hz (Shutter Speed 2000)
3840Hz (Shutter Speed 2000)

Professional Image
With High Refresh Rate

Up to 3840Hz high refresh rate keeps it high quality display performance even under professional camera, no water waves or screen flashing, totally meet the live show requirements.

Nanosecond Level Response Time

LED response shortly in nanosecond level without smearing or double image effect.
BRWall video LED Display
Projection
NWA series enjoy a long product life (100,000 hours, 8-10years),
attributed to its advanced experience in manufacturing and processing management, rich design experience in drive circuit.

100000

Hours Lifetime

Specifications

NWA Series P1.25 P1.56 P1.667
Pixel Pitch 1.25 mm 1.56 mm 1.667 mm
Module Size (WxHxD) 200mmx150mmx13mm 200mmx150mmx13mm 200mmx150mmx13mm
Physical Density 640,000 Pixel/㎡ 410,900 Pixel/㎡ 359,856 Pixel/㎡
Module Resolution (W×H) 160x120 128x96 120x90
Module Port HUB-HD01 HUB-HD01 HUB-HD01
Driving Method Constant Current 1/30scan Constant Current 1/30scan Constant Current 1/30scan
LED Encapsulation Commercial Grade 3-in-1 SMD1010 (Black) Commercial Grade 3-in-1 SMD1010 (Black) Commercial Grade 3-in-1 SMD1010
Module Working Voltage 4.2-5 VDC 4.2-5 VDC 4.2-5 VDC
Module Maximum Power Consumption 35W 35W 35W
Viewing Angle (Horizontal/Vertical) 160°/140° 160°/140° 160°/140°
Module Of Cabinet (W×H) 2x2 2x2 2x2
Cabinet Resolution (W×H) 320x240 256x192 240x180
Option Distance 1-30m 1-30m 1-30m
Frame Rate 60Hz/120Hz(3D) 60Hz/120Hz(3D) 60Hz/120Hz(3D)
Refresh Rate 1920-3840Hz Adjustable 1920-3840Hz Adjustable 1920-3840Hz Adjustable
Brightness 300-800 cd/㎡ Adjustable 800-1000 cd/㎡ Adjustable 1100 cd/㎡ Adjustable
Contrast Ratio 5000:1 5000:1 5000:1
Colour Temperature 3200K-9300K 2000K-9500K 8500K-11500K
Brightness Uniformity >97% >97% >97%
Color Uniformity >97% >97% >97%
Light Pixel Centerline Spacing Difference <3% <3% <3%
Singel Pix Brightness Corretion Support Support Support
Gray Scale/color ≥16.7M color ≥16.7M color ≥16.7M color
LED Lifetime: Typical 100,000 hrs 100,000 hrs 100,000 hrs
Cabinet Weight 4.8Kg 4.8Kg 4.8Kg
Cabinet Flatness ≤0.1mm ≤0.1mm ≤0.1mm
Cabinet Size (WxHxD) 400mmx300mmx80mm 400mmx300mmx80mm 400mmx300mmx80mm
Maximum Power 140 W 110 W 90 W
Display Working Voltage 100-240VAC 50/60Hz 100-240VAC 50/60Hz 100-240VAC 50/60Hz
Working environment temperature -10~40℃ -10~40℃ -10~40℃
Working Environment Humidity(RH) 10%~70% 10%~70% 10%~70%
